In Kubernetes, every resource manifest (written in YAML or JSON) must declare four top-level fields:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
spec:
  ...

The kind field tells Kubernetes what type of resource you are creating or managing. It maps to a specific API object within Kubernetes, and each kind has its own schema, behavior, and lifecycle.

The smallest deployable unit in Kubernetes. A Pod wraps one or more containers that share network and storage.

apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
  labels:
    app: nginx
spec:
  containers:
    - name: nginx
      image: nginx:1.25
      ports:
        - containerPort: 80

Note: Pods are rarely created directly. Use Deployments or StatefulSets instead for resilience.

Manages a ReplicaSet to ensure a specified number of Pod replicas are running at all times. Supports rolling updates and rollbacks.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-app
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: web-app
  template:
    metadata:
      labels:
        app: web-app
    spec:
      containers:
        - name: web
          image: nginx:1.25
          ports:
            - containerPort: 80

Exposes a set of Pods as a stable network endpoint. Handles load balancing across all matching Pods.

apiVersion: v1
kind: Service
metadata:
  name: web-service
spec:
  selector:
    app: web-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
  type: ClusterIP

Stores non-sensitive configuration as key-value pairs, decoupling config from container images.

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  APP_ENV: production
  APP_PORT: "8080"
  log_level: info

Use in a Pod:

envFrom:
  - configMapRef:
      name: app-config

Like ConfigMap, but for sensitive data (passwords, tokens, TLS certs). Values are base64-encoded.

apiVersion: v1
kind: Secret
metadata:
  name: db-credentials
type: Opaque
data:
  username: YWRtaW4=        # base64 of "admin"
  password: cGFzc3dvcmQ=   # base64 of "password"

Security note: base64 is encoding, not encryption. Use tools like Sealed Secrets or Vault for production.

Like Deployment, but designed for stateful applications (databases, message queues) that need:

• Stable, persistent network identity
• Ordered, graceful deployment and scaling
• Persistent storage per pod

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql
spec:
  serviceName: "mysql"
  replicas: 3
  selector:
    matchLabels:
      app: mysql
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
        - name: mysql
          image: mysql:8.0
          env:
            - name: MYSQL_ROOT_PASSWORD
              value: "secret"
          volumeMounts:
            - name: data
              mountPath: /var/lib/mysql
  volumeClaimTemplates:
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 10Gi

Ensures a copy of a Pod runs on every node (or selected nodes). Used for cluster-level services like log collectors, monitoring agents, or network plugins.

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: fluentd
spec:
  selector:
    matchLabels:
      name: fluentd
  template:
    metadata:
      labels:
        name: fluentd
    spec:
      containers:
        - name: fluentd
          image: fluent/fluentd:v1.16

Runs a one-off task to completion. Kubernetes ensures the Pod runs successfully at least once.

apiVersion: batch/v1
kind: Job
metadata:
  name: db-migration
spec:
  template:
    spec:
      containers:
        - name: migrate
          image: myapp:latest
          command: ["python", "manage.py", "migrate"]
      restartPolicy: OnFailure

Runs Jobs on a scheduled (cron) basis.

apiVersion: batch/v1
kind: CronJob
metadata:
  name: backup-job
spec:
  schedule: "0 2 * * *"   # Every day at 2:00 AM
  jobTemplate:
    spec:
      template:
        spec:
          containers:
            - name: backup
              image: backup-tool:latest
              command: ["/bin/sh", "-c", "run-backup.sh"]
          restartPolicy: OnFailure

Creates a virtual cluster within a Kubernetes cluster, providing isolation between teams or environments.

apiVersion: v1
kind: Namespace
metadata:
  name: staging

Requests persistent storage from the cluster for a Pod.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: my-storage
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi

Manages external HTTP/HTTPS access to services, routing rules, TLS termination.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
    - host: myapp.example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: web-service
                port:
                  number: 80

The apiVersion determines which API group and version handles your kind:

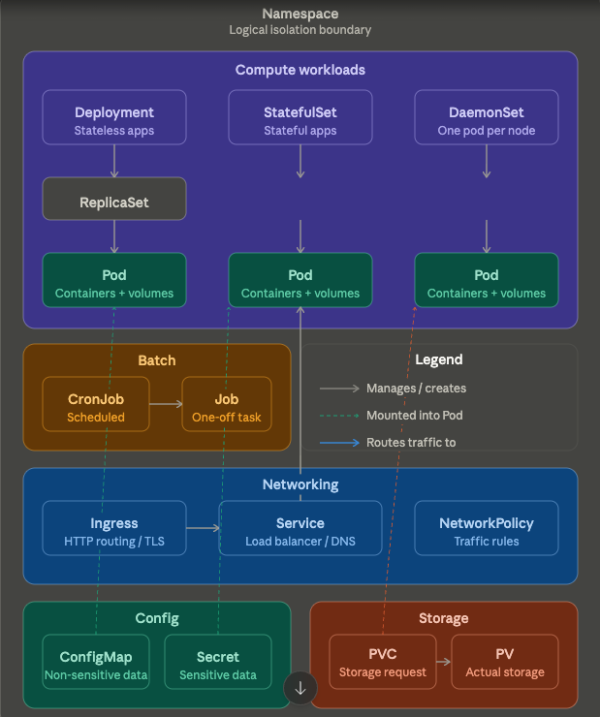

Hierarchy flows top-down:

Deployment → ReplicaSet → Pod (Deployment manages replicas, which manage pods)

StatefulSet and DaemonSet go straight to their own Pods

CronJob → Job (CronJob triggers Jobs on a schedule)

Networking routes traffic inward:

Ingress → Service → Pod (external HTTP traffic funneled down to running containers)

NetworkPolicy applies traffic rules at the Pod level

Config and Storage are mounted into Pods:

ConfigMap and Secret are injected as env vars or volume mounts (dashed lines)

PVC (PersistentVolumeClaim) binds to a PV (PersistentVolume) and mounts into Pods

Everything lives inside a `Namespace for isolation.

• Kubernetes Concepts
• Kubernetes API Reference
• kubectl api-resources — list all available kinds in your cluster
